The LAX 300G is the ideal partner for interior construction professionals who need accurate laser lines with optimum visibility. The innovative STABILA GREENBEAM technology provides razor-sharp, extremely bright, long laser lines to make your work even more efficient and productive. You can perform plumb-line and leveling work on the floor, wall and ceiling at the same time – making the laser a true all-rounder with numerous areas of application.

Features

• Self-levelling line laser with plumb-line dots.
• Work quickly and directly on the fine laser lines using STABILA GREENBEAM technology – with optimum visibility up to 90ft.
• The versatile technology provides 1 horizontal line, 1 vertical line and plumb-line dots upwards and downwards.
• Visible vertical line tracks on the wall behind the laser itself.
• The latest generation of energy-saving laser diodes enables an operating time of up to 15 hours.
• Quick self-levelling function thanks to pendulum technology designed for the construction site.
• Easy to change functions using single-button operation.
• Versatile use: can be used on the floor, on a tripod (1/4in thread), with rare-earth magnets on metallic objects or on the wall bracket.
• Shock-absorbent STABILA soft grip casing.
• The laser can be pivoted 360° inside the housing.
• Protection of the optics against dust and scratches in park position.
• Protection class IP 54.
• Belt pouch.

Specifications

• Laser class: 2
• Output: < 1 mW
• Laser wavelength: 510 - 530 nm
• Self-levelling range: +/-4.50°
• Levelling accuracy: +/-3/16 in @ 50 ft
• Line straightness: +/-1/8 in @ 50 ft
• Laser beam accuracy (up): +/-3/16 in @ 50 ft
• Laser beam accuracy (down): +/-1/4 in @ 50 ft
• Measuring range of visible point: 90 ft
• Measuring range of visible line: 90 ft
• Operating life: 15 h
• Protection classIP: 54
• Tripod connection: 1/4"-20

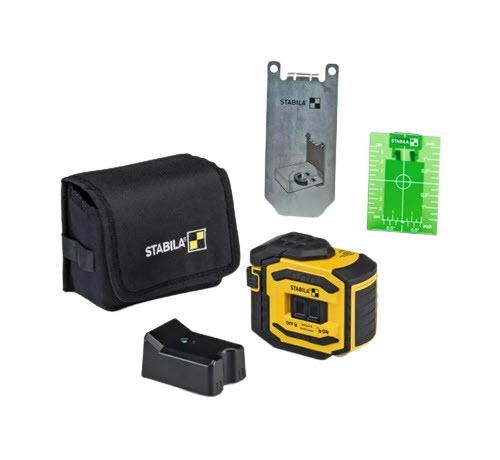

Includes

• Self-levelling LAX 300 G cross line plus plumb point laser
• High stability framing base
• Target plate
• Wall bracket
• Belt pouch
• (3) AA 1.5 V Batteries
